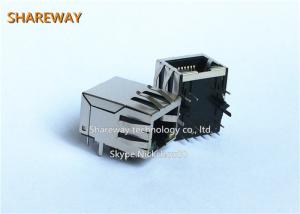

JD0-0002NL Magnetic RJ45 Jack , Female To Female POE Magnetic Modular Jack For Switches

Product Categories

SHAREWAY TECHNOLOGY CO., LTD.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: JD00002NL Magnetic RJ45 Jack Female To Female POE Magnetic Modular Jack For Switches
Brand: Shareway
Price: 1 USD

Brand Name : Shareway

Model Number : JD0-0002NL

Certification : CE UL RoHS ISO9001:2008

Place of Origin : Guangdong China

MOQ : 100/500/1000

Price : Supportive

Payment Terms : TT,Paypal

Supply Ability : 3000K.PCS/Month

Delivery Time : Stock or 3 weeks

Packaging Details : Reel

Product name : JD0-0002NL female to female POE Magnetic Modular Jack For switches

Gender : female

Inductance : 350uH min

Color : Silver

Gold Plating : 1.5u-50u

Operating temperature : -40℃ TO +70℃

Contact Now

JD0-0002NL female to female POE Magnetic Modular Jack For switches

Electronical Specifications:

Turn Ratio @100KHz: (P2-P3):(J1-J2) = 1:1± 5% (P4-P5):(J3-J6) = 1:1± 5% (P6-P7):(J4-J5) = 1:1± 5% (P8-P9):(J7-J8) = 1:1± 5%
Primary Inductance: 350uH MIN @100KHz, 0.1V 8mA DC BIAS
DC Resistance: 1.2 OHMS MAX
Insertion Loss: 1-125MHz -1.0dB TYP
Return Loss: 1-40MHz -16dB MIN 40-60MHz -12dB MIN 60-80MHz -10dB MIN 80-100MHz -8dB MIN
Cross Talk: 1-100MHz -30dB MIN
Common to common mode attrnuation : 1-100MHz -30dB MIN
Isolatioon : PHY Side to Line Side : 2250VDC

LED Specifications:

JD0-0002NL female to female POE Magnetic Modular Jack For switches

Shape and Dimensions:

JD0-0002NL Magnetic RJ45 Jack , Female To Female POE Magnetic Modular Jack For Switches

Product Tags:

10 pin rj45 jack
