EP High Frequency Transformer , Ferrite Core Power Transformer PCB Mounted 30uH EP-378SG

Name: EP High Frequency Transformer Ferrite Core Power Transformer PCB Mounted 30uH EP378SG
Brand: Shareway
Price: 1 USD

China EP High Frequency Transformer , Ferrite Core Power Transformer PCB Mounted 30uH EP-378SG factory

Brand Name : Shareway

Model Number : EP-378SG

Certification : RoHS,ISO9001-2001

Place of Origin : Guangdong,shenzhen

MOQ : 500/1000

Price : Supportive

Payment Terms : TT,Paypal,West Union

Supply Ability : 1kk-pcs/month

Delivery Time : Stock Or 3 weeks

Packaging Details : Reel/Tray

Product name : 30uH EP-378SG EP high frequency transformer in ferrite core PCB mounted

Application : Ferrite core PCB mounted

Inductance : 30uH

High : 10.5mm

Color : Black and yellow

Turns Ratio : 1:0.333:0.333

Contact Now

30uH EP-378SG EP high frequency transformer in ferrite core PCB mounted

Description:

1.High quality and Competitive price
2.Excellent after-sale service
3.High-temperature resistant
5.High efficiency of over 95%
6. Working frequency range 20kHZ-500kHZ
7.High isolation strength
8. Lower profile and weight
9. high power density
10. Operating temperature -40℃to+125℃

Electrical Specifications @25 ℃
Part Number	Turns Ratio(±3%)	OCL(uH±10%) @10KHz,0.1V	LK(uH max) @100KHz,0.1V	DCR (mΩ max)			HI-POT (Vrms)
Part Number	3-4:5,6-7,8:2-1	3-4	3-4(short other pins)	3-4	2-1	5,6-7,8	Pri/Aux-Sec
EP-378SG	1:0.333:0.333	30	1.0	70	120	15	1500

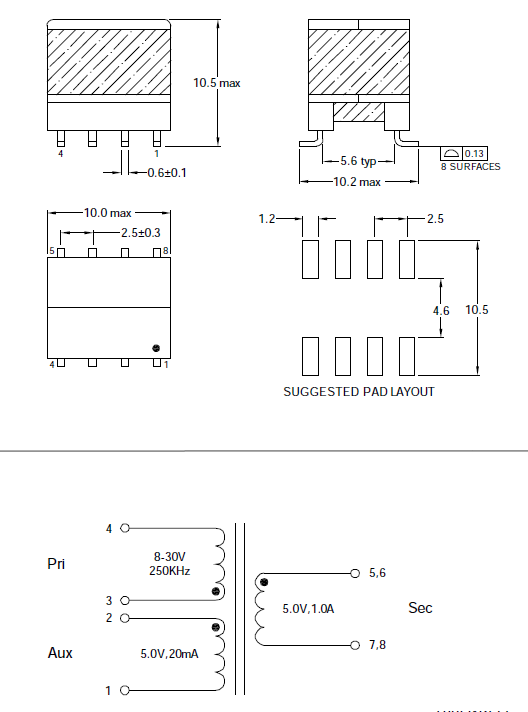

Dimensions:

EP High Frequency Transformer , Ferrite Core Power Transformer PCB Mounted 30uH EP-378SG
