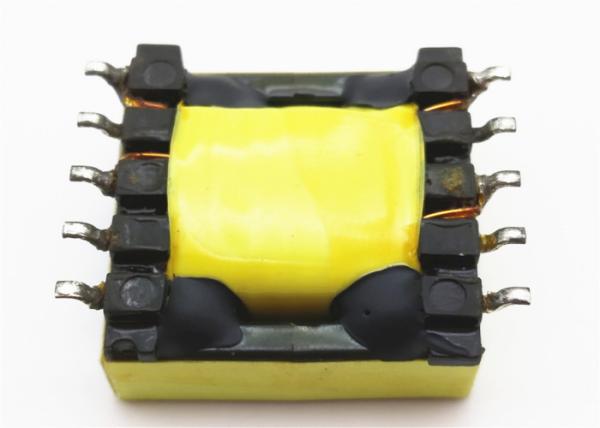

DC DC converters SMPS Flyback Transformer Ferrite core for LTC4267 chip

Product Categories
SHAREWAY TECHNOLOGY CO., LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

DC DC converters SMPS Flyback Transformer Ferrite core for LTC4267 chip

  • 1
  • 2

Brand Name : Shareway

Model Number : SEFD15-004 = TGP13-S004EFD15LF

Certification : CE UL RoHS ISO9001:2008

Place of Origin : Guangdong China

MOQ : 100/500/1000

Price : Supportive

Payment Terms : TT,Paypal, Western Union

Supply Ability : 300K.PCS/Month

Delivery Time : Stock or 3 weeks

Packaging Details : 150pcs/Reel

Product name : SEFD15-004 = TGP13-S004EFD15LF, DC/DC converters used in PoE applications For LTC4267

Drive output : 5.6 V, 10 mA

Output : 3.3 V, 3 A

Color : Silvery&Black

Weight : 5.0 – 5.3 g

Ambient temperature : –40°C to +125°C

Contact Now

Features of SEFD15-004 = TGP13-S004EFD15LF, DC/DC converters used in PoE applications For LTC4267:

  • Industrial temperature range transformers, –40°C to +125°C.
  • Fully compliant to IEEE802.3af requirements for isolation and power ratings.
  • Designed for LTC4267 chip, for DC/DC converters application.
  • Ferrite core materials, with affordable price for multiple applications.
  • Tape&Reel packaging, easily for machine pick and place.

Specifications:

Part Number Trader Part Number Turns Ratio / Pri:Bias:Sec:Drv DCR (mOhm Max) /Pri/Bias/Sec/Drv Pri OCL (uH ± 10%) Pri Lk ( uH Max) Suitable for IC P/N
SEFD15-004 TGP13-S004EFD15LF 1:0.208:0.083 520/400/10 145 5 LTC4267
SEFD15-008 TGP13-S008EFD15LF 1:0.500:0.167 150/400/10 33 1 LM5072
SEFD15-012 TGP13-S012EFD15LF 1:0.500:0.150:0.275 520/760/20/400 160 2 TPS23750
SEP13-003 TGP13-S003EP13LF 1:0.208:0.083 500/400/15 145 5 LTC4267
SEP13-007 TGP13-S007EP13LF 1:0.500:0.167 100/400/12 33 1 LM5072
SEP13-011 TGP13-S011EP13LF 1:0.500:0.150:0.275 450/700/30/400 160 3 TPS23750
SEP10-002 TGP-S002EP10LF 1:0.208:0.083 450/400/12 145 4 LTC4267
SEP10-006 TGP-S006EP10LF 1:0.500:0.167 100/400/10 33 1 LM5072
SEP10-010 TGP-S010EP10LF 1:0.500:0.150:0.275 450/700/30/400 160 3 TPS23650
SEP7-001 TGP3-S001EP7LF 1:0.208:0.083 1200/300/20 145 4 LTC4267
SEP7-005 TGP3-S005EP7LF 1:0.500:0.167 160/300/15 33 1 LM5072
SEP7-009 TGP3-S009EP7LF 1:0.500:0.150:0.275 1000/550/50/300 160 3 TPS23750

SEFD15 SMD 5+5 Shape and Dimensions:

DC DC converters SMPS Flyback Transformer Ferrite core for LTC4267 chip

SEFD15 SMD 6+6 Shape and Dimensions:

DC DC converters SMPS Flyback Transformer Ferrite core for LTC4267 chip

SEP13 SMD 5+5 Shape and Dimensions:

DC DC converters SMPS Flyback Transformer Ferrite core for LTC4267 chip

SEP10 SMD 4+4 Shape and Dimensions:

DC DC converters SMPS Flyback Transformer Ferrite core for LTC4267 chip

SEP7 SMD 4+4 Shape and Dimensions:

DC DC converters SMPS Flyback Transformer Ferrite core for LTC4267 chip

DC DC converters SMPS Flyback Transformer Ferrite core for LTC4267 chipDC DC converters SMPS Flyback Transformer Ferrite core for LTC4267 chip

DC DC converters SMPS Flyback Transformer Ferrite core for LTC4267 chip
