10/100/1000 Base-T Lan transformer 5K VAC dielectric withstanding voltage Designed for PoE+ Cross to SM51589

Name: 101001000 BaseT Lan transformer 5K VAC dielectric withstanding voltage Designed for PoE Cross to SM51589
Brand: Shareway
Price: 0.8 USD

China 10/100/1000 Base-T Lan transformer 5K VAC dielectric withstanding voltage Designed for PoE+ Cross to SM51589 factory

Brand Name : Shareway

Model Number : SC24105-5

Certification : RoHs, Reach, UL

Place of Origin : CHINA

MOQ : 100

Price : USD$0.8 to USD$1.70

Payment Terms : T/T, Paypal

Supply Ability : 1000,000 piece per month

Delivery Time : onw week for sample, 4 weeks for mass order

Packaging Details : Tray, Tape & Reel

Brand : Shareway

Speed : 10/100/1000M Base-T

Voltage : High 5KV

Soldering : SMD type

Insertion Loss : 1-100MHz

Inductance : 100kHz / 100mV @ 8mA DC-Bias

Application : PoE

Wire : 180

Contact plating : Cu-Ni-Sn

Contact Now

Shareway High Voltage 10/100M base-T Lan transformer SC12122BNL cross to 7490140122B

Single port, 10/100Base-T, 5KV High Voltage Ethernet Lan Transformer
Shareway part number	SC24105-5
Cross part number	Sm51589
Speed	10/100/1000M Base-T
Ports	Single
Application	Ethernet with PoE
Package	SMD
Inductance	350uH MIN. 100kHZ/100mV @8mA DC-Bias
Turns ratio (±5 %)	1CT:1CT
Insertion Loss:	1-100 MHz.......................-1.0 dB max
Return Loss (@ 100 Ohms)	1-30 MHz...........................-18 dB min. 40 MHz...........................-14.4 dB min. 50 MHz...........................-13.1 dB min. 60-80 MHz.........................-12 dB min. 100 MHz............................-10 dB min
PoE+ Current	Up to 720 mADC
Crosstalk	30 MHz..............................-45 dB min. 60 MHz..............................-40 dB min. 80 MHz..............................-35 dB min
Operating Temperature Range	-40 °C to +85 °C
Storage Temperature Range	-40 °C to +125 °C
Sample	Free sample supported for testing

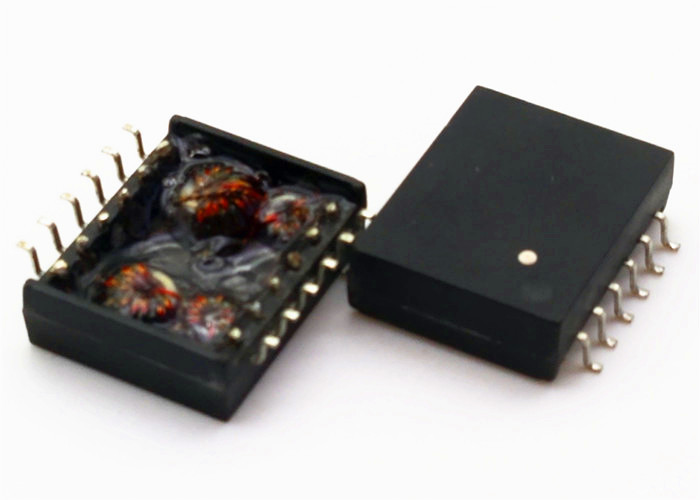

Product Photos:

10/100/1000 Base-T Lan transformer 5K VAC dielectric withstanding voltage Designed for PoE+ Cross to SM51589

How to place the order to us:

1. Please send your demand datasheet to us.

2. We will provide drop in alternative and price for refer.

3. If price ok, then we will send you some free sample for testing.

4. After testing, you can place the mass order and process the payment.

5. The lead time for mass order usually is about 4 weeks.

6. When the order is ready, we will ship out and send you the shipping details for tracking.
