EFD20 SMPS Flyback Transformer for Push-pull converters 749196537
Characteristics
- Transformer with 6 identical windings
- 4 sizes with 5 different lengths of air gap each
- Isolation voltage up to 1.5 kVAC
- Low leakage inductance
- Operating temperature: –40 ºC to +125 ºC
- By using different circuits more than 375 transformer solutions and about 125 choke solutions possible. Consequently, quick
- prototyping possibilities
Applications
- Flyback converters
- Forward converters
- Push-pull converters
- Step-up/step-down converters
- SEPIC
Electrical Properties:
| Properties | | Test conditions | Value | Unit | Tol. |
| Inductance | L BASE | 100 kHz/ 0.1 V | 4.3 | µH | ±20% |
| Turns Ratio | n | | 1:1:1:1:1:1 | | |
| Voltage-µSecond Base | ∫Udt Base | | 83.6 | Vµs | max |
| Rated Current Base | I R BASE | ΔT = 40 K | 2.3 | A | typ |
| Saturation Current Base | I SAT BASE | |ΔL/L| < 10 % | 3.24 | A | typ. |
| DC Resistance Base | RDC BASE | @ 20 °C | 36 | mΩ | max. |
| Leakage Inductance Base | L S Base | 100 kHz/ 0.1 V | 0.18 | µH | typ. |
| Insulation Test Voltage | VT | All Windings | 1500 | V (AC) | |
Shape and Dimensions:

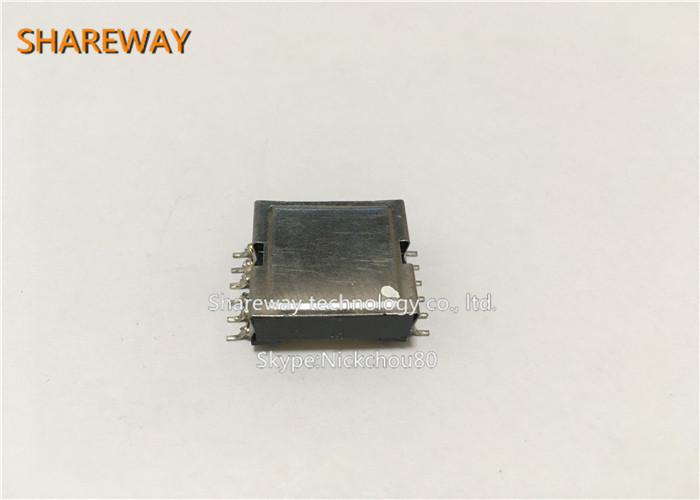

Product picture:
EFD20 SMPS Flyback Transformer for Push-pull converters 749196537
