Universal SMPS Flyback Transformer for USB chargers 750341569
Characteristics
- Universal, US or European offline input voltage
- Small size
- Low leakage inductance
- Multiple-output options
Applications
- Industrial controls
- USB chargers
- Metering
- Process controls
- Factory automation
- Security systems
- Garage door opener auxiliary supplies
ELECTRICAL SPECIFICATIONS @25°C unless otherwise noted
| PARAMETER | TEST CONDITIONS | VALUE |
| D.C.RESISTANCE 9-10 | @20℃ | 3.0 ohms ±10% |
| D.C.RESISTANCE 6-7 | @20℃ | 0.250 ohms ±10% |
| D.C.RESISTANCE S-F | @20℃ | 0.030 ohms ±10% |
| INDUCTANCE 9-10 | 50kHz,100mVAC,Ls | 1.350mH ±10% |
| LEAKAGE INDUCTANCE 9-10 | tie(6+7+S+F), 100kHz,100mVAC,Ls | 45uH max |
| DIELECTRIC 10-S | tie(6+9),4500VAC,1 second | 3750VAC,1 minute |
| DIELECTRIC 6-9 | 625VAC,1 second | - |
| TURNS RATIO | (9-10):(S-F) | 15.66:1,±2% |
| TURNS RATIO | (9-10):(6-7) | 4.27:1.±2% |
Shape and Dimensions:

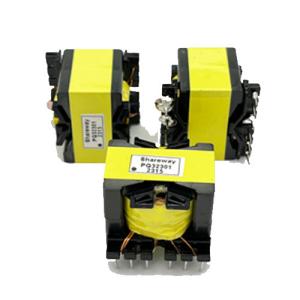

Product picture:
Universal SMPS Flyback Transformer for USB chargers 750341569
